Material Thickness :
1.0-3.0 mmBody Frame :
H450Forming Station :
22 stepsMain Motor :
22KW+22KW dual motorDriving :
Motor drive,gear chain driveRoller Material :
Made from Cr12Mov heat treatmentYX41-41/52/62/72 Strut Channel Roll Forming Machine
Machine Features
The X41-41/52/62/72 Photovoltaic bracket punching production line is used to produce brackets related to the electrical industry,and the products produced are multi-functional overlapping brackets. A multifunctional support commonly used in the fields of building solar photovoltaic brackets,seismic brackets,building cable electrical engineering facilities,etc.
Machine Parameters
1.Material Thickness: 1.0-3.0 mm
2.Forming Station:22 steps
3.Body Frame:H450
4.Main Motor:22KW+22KW dual motor
5.Driving:Motor drive,gear chain drive
6.Roller material:Made from Cr12Mov heat treatment

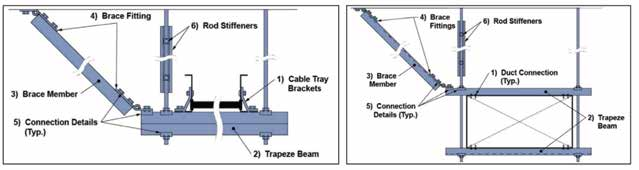

Profile Application Case

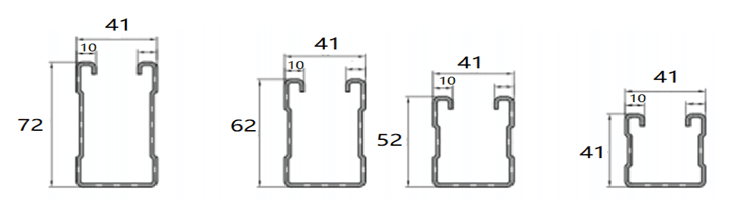

Profile Drawing
