T/T or L/CAUTO Solar Panel Bracket C Purlin Roll Forming Machine(Economy Type)
1. Precise profile, similar to Samco purlin forming line for solar profiles.
2. Beautiful appearance.
3. Stable and efficient.
4. Easy operation and low maintenance cost.
Punching Holes Show

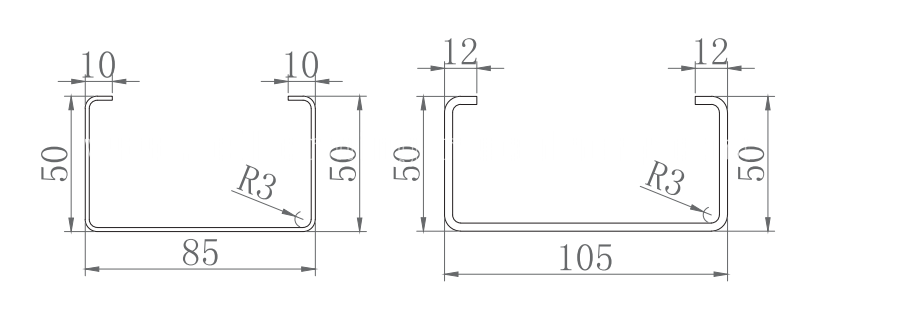

profile Drawing
1) CU purlin roll forming machine Decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 500mm±30mm
Capacity: Max. 3Tons
With 3 tons hydraulic decoiler for option
2)Feeding and Leveling Device
Brand: BMS Original: China
3)Punching System
4)Hydraulic pre cutting Device
5)Main Machine
Rollers are manufactured from high quality bearing steel GCr15, CNC lathes, heat treated.
Choice with black treatment or hard chrome coating.
With feeding guide rails, the body frame is welded from 400#H Type steel.
Shafts manufactured from 45#,Main shaft diameter=φ55/70mm,precision machined.
Motor driving,Gear chain transmission, 15 rollers to form.
Main motor=7.5KW , Frequency speed control.
Forming speed approx.18m/min.
6) Post cutting device
High-quality mold steel Cr12 is used for heat treatment
The cutter frame is welded from high-quality 30mm steel plate
Pre-punching and pre-cutting, stop to punch, stop to cut.
Hydraulic motor: 5.5KW, hydraulic pressure range: 0-16Mpa
7)PLC Control System
Touch screen:German Schneider Electric/Taiwan WEINVIEW,
Inverter :Taiwan DELTA/SHILIN,Encoder :Japan Koyo/OMRON)
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
User's manual in English
8)Exit Rack
Un-powered,two units
Our advantage
1.Over 25 years experience in roll forming industry,nearly 10 years of OEM experience for Taiwan roll forming machines and one of China TOP 3 high quality roll forming machinery manufacturers and exporters (BMS has exported to over 100 countries and regions).
2.Industry's best warranty in China 2 years parts & 2 years labor and 7*24 award winning customer service within 24 hours.
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container by steel rope and lock, suitable for long-distance transportation.
1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 60 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 100 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
